Overview

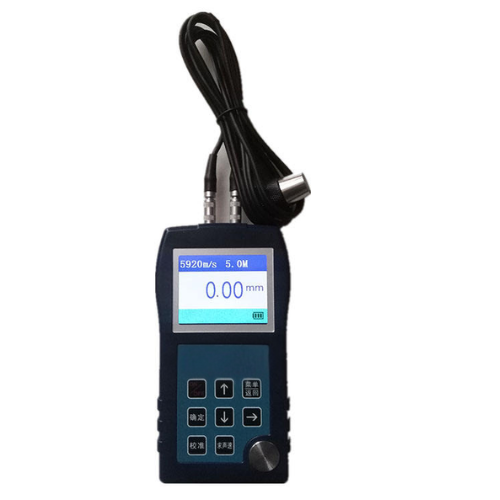

Enviro Testers Portable Ultrasonic Metal and Plastic Thickness Gauge High Precision is a versatile and compact device designed for accurate thickness measurement of metals, plastics, glass, and other materials. This device uses advanced ultrasonic technology combined with a high-speed processor to deliver fast, non-destructive, and reliable measurements. It supports multiple measurement modes, including standard, ultra-thin, and penetration coating modes, allowing it to adapt to different material types and surface conditions. With a 2.3-inch color display, Bluetooth connectivity, and user-friendly interface, this device is suitable for on-site inspections, industrial quality control, and laboratory use. It also features built-in calibration, multi-probe compatibility, and large data storage for easy measurement, tracking and analysis.
Features
- Accurate thickness measurement for metals, plastics, glass, and other materials
- Multiple measurement modes: standard, ultra-thin, and penetration coating
- 3-inch TFT color display for easy reading on-site
- Bluetooth data transmission for seamless reporting
- High-speed processor ensures fast, reliable measurements
- Built-in calibration and sound velocity adjustment for precision
- Supports multiple probes, including high-temperature options
- Large data storage: can save up to 2000 measurements
- Compact and portable design for field and industrial use
- Automatic and manual shutdown options to conserve battery
Technical Specifications
| Measuring Range | Standard: 0.55 in to 19.69 in (0.55 to 500 mm) ; Penetration mode: 0.10 in to 0.98 in (2.5 to 25 mm) |
| Display Resolution | 0.0004 in (0.01 mm) |
| Measurement Accuracy | ±(0.1 + 1% H) mm |
| Material Velocity | 1000 to 9999 m/s |
| Bandwidth | 1 MHz to 10 MHz (-3 dB) |
| Power Supply | 4.5 VDC (three AAA batteries) |
| Screen | 2.3-inch TFT color screen |
| Data Storage | Up to 2000 values |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Humidity | < 85% RH |
| Dimensions | 5.12 in × 2.76 in × 0.98 in (130 mm × 70 mm × 25 mm) |
| Weight | 4.41 oz (125 g, excluding batteries) |
