Overview

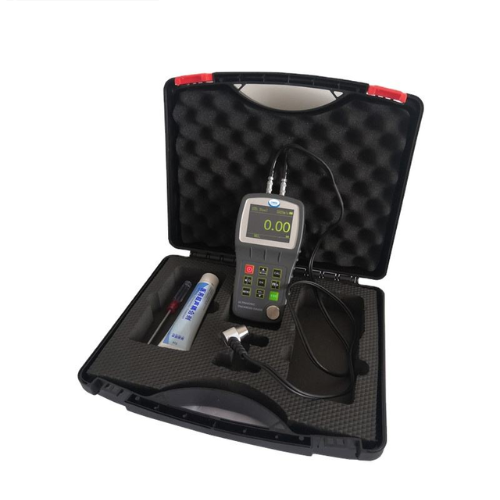

Enviro Testers Ultrasonic Thickness Gauge for Metals, Plastics and Coatings is a high-precision ultrasonic thickness gauge designed for accurate measurement of metals, plastics, ceramics, glass, fiberglass, and other materials that conduct ultrasonic waves. It is suitable for applications in industries such as petroleum, chemical, metallurgy, shipbuilding, aviation, and aerospace. This product features both zero-point and two-point calibration functions, allowing automatic correction of system errors. It can also measure sound velocity based on known thickness to improve accuracy. With its scanning mode, this device displays the maximum and minimum measured values in real time. Lightweight and portable, it is ideal for field inspections, laboratory testing, and quality control in manufacturing processes. The 2.4-inch high-definition color LCD screen ensures clear and easy-to-read measurements in various lighting conditions. It supports USB connectivity for exporting data to a computer, automatic probe connection status indication, and various optional probes for high-temperature, thin-wall, and small-diameter measurements. This product combines reliability, accuracy, and versatility in a compact design for professional ultrasonic thickness measurement.
Features
- High-precision ultrasonic thickness measurement
- Supports metals, plastics, ceramics, and glass
- Zero-point and two-point calibration for accuracy
- Real-time scanning mode for min/max values
- Optional probes for various applications
Technical Specifications
| Measuring Range | 0.75 mm to 300 mm |
| Resolution | 0.01 mm (<100 mm) / 0.1 mm (>100 mm) |
| Accuracy | ±(0.5%H + 0.01 mm) |
| Sound Velocity Range | 1000 to 9999 m/s |
| Display | 2.4 in LCD, 320 x 240 resolution |
| Scan Mode | 25 times/second |
| Storage | TF card, exportable |
| Communication | USB interface |
| Size | 5.71 in x 2.95 in x 1.06 in (145 mm x 75 mm x 27 mm) |
