Overview

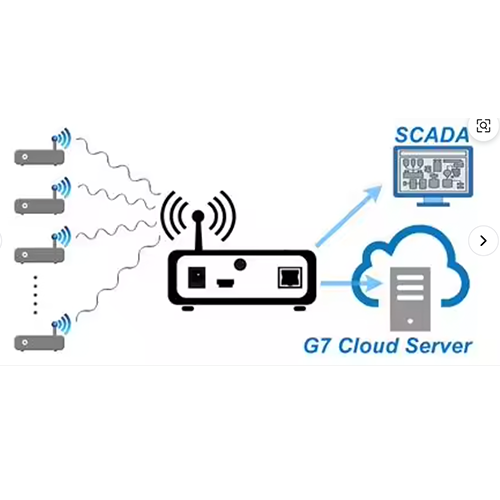

The Enviro Testers Noise Monitoring Sensor is designed for industrial noise and analog measurement applications with wireless transmission.
It supports long-range data communication up to 4000 meters using 433 MHz RF signals.
The system provides reliable data monitoring with battery life up to 10 years depending on interval settings.
Certified with CE, FCC, and RoHS, it ensures durability, remote monitoring, and compliance for industrial environments.
Features
- Long-Range Wireless Transmission: Supports up to 1200m direct and 4000m with extender.
- Versatile Sensor Input: Compatible with 4–20mA and 0–5VDC analog signals.
- Reliable Data Logging: Upload intervals from 5 seconds to 4 hours.
- Durable Power Supply: Built-in 3.6V 14000mAh battery with up to 10 years extended life.
- Wide Operating Range: Functions in -15°C to 75°C (5°F–167°F) with humidity up to 90% RH.
- Industrial Protocols: Supports Modbus TCP and TCP/IP for seamless integration.
- User-Friendly: Programmable sensor ID, CE/FCC/RoHS certified, and OEM/ODM customization available.
- Robust Build: Made from ABS, waterproof plastic, and metal housing for durability in harsh environments.
- Flexible Monitoring: Works with Windows, iOS, Android apps for remote access and analysis.
Technical Specifications
| Frequency (RF Wireless) | 433 MHz, 4.8Kbit/s |
| RF Power | < 20 dBm |
| Wireless Distance | 1200 m (unblocked); Extender: up to 4000 m |
| Interface | RS232 / RS485 |
| Protocol | TCP/IP, Modbus TCP |
| Upload Interval | 5 seconds ~ 4 hours |
| Sensor Input | 4–20 mA / 0–5 VDC |
| Operation Rating | 80 mA (data transmission) |
| Standby Rating | ~3.0 µA (sleep mode) |
| Internal Power Output | 12V or 24V DC (max 40 mA rating) |
| Battery | 3.6V, 14000 mAh (up to 5 years @30 min upload) |
| Extended Battery | 14000 mAh (up to 10 years @1 hr upload) |
| Network Port | 10/100M Ethernet (Fixed & Dynamic IP, DDNS) |
| Operating Temperature | -15°C ~ 75°C (5°F ~ 167°F) |
| Operating Humidity | 10–90% RH |
| Sensor ID | User programmable (5 digits) |
| Certification | CE, FCC, RoHS |
| Dimension (Sensor) | 115 × 90 × 55 mm |
| Dimension (Base Extender) | 110 × 95 × 45 mm |
| Material | ABS, Plastic, Waterproof Metal |
