Overview

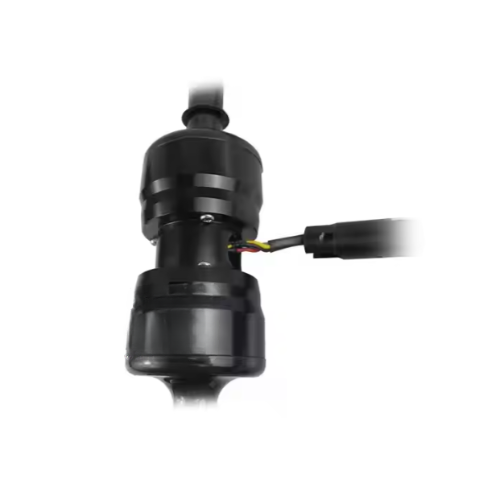

The YIGU YGC-FSFX-S is a high-precision integrated wind speed and direction sensor designed for accurate environmental monitoring. It delivers exceptional wind speed accuracy of ±(0.3 + 0.03V) m/s and direction accuracy within ±3°, with the ability to detect starting wind speeds as low as 0.5 m/s. Built for durability, it operates reliably in extreme temperatures from -35°C to 60°C and supports 100% RH non-condensing conditions. With a fine resolution of 0.01 m, dual current outputs (4–20 mA and 0–20 mA), and a robust 300V, 80°C rated voltage, this compact, lightweight device is ideal for precise, real-time wind measurement in demanding environments.
Features
- Integrated wind speed and direction measurement.
- High wind speed accuracy of ±(0.3 + 0.03V) m/s.
- Direction accuracy within ±3°.
- Detects starting wind speeds as low as 0.5 m/s.
- Operates in extreme temperatures from -35°C to 60°C.
- Supports 100% RH non-condensing environments.
- Robust rated voltage of 300V, 80°C tolerance.
- Dual current output: 4-20mA.
- High resolution of 0.01 m for precise readings.
- Compact and lightweight with 1120 g packaging weight.
Technical Specifications
| Type | Wind Speed Measuring Device |
| Brand Name | YIGU |
| Model Number | YGC-FSFX-S |
| Accuracy | Wind speed: (0.3+0.03 V) m/s (V stands for real-time wind speed value) |
| Resolution | Wind speed: 0.1m/s, wind direction: 1. |
| Starting Wind speed | ≤0.5m/s |
| Maximum Power Consumption | 0.9W |
| Load Capacity | DC12V power supply, current output impedance ≤350Ω. DC24V power supply, |
| Voltage Type | Output impedance ≥1KΩ |
| Working Environment | Temperature-35℃ ~ 60℃ |
| Humidity | ≤100%RH without condensation |
| Protection Grade | IP64 |
