Overview

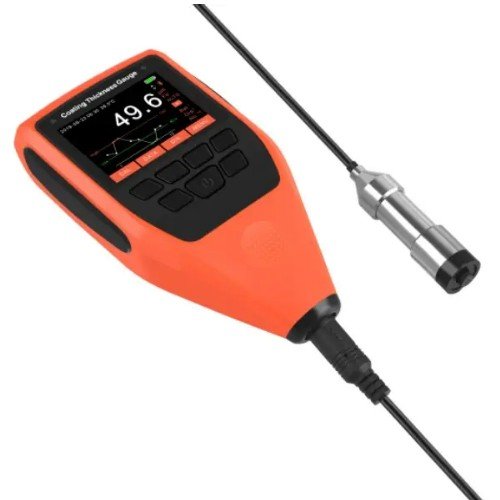

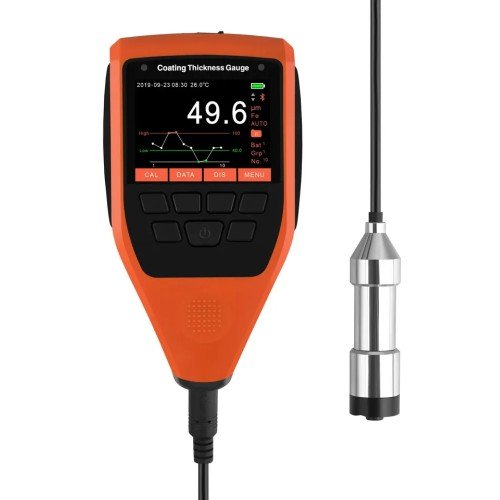

Enviro Testers Elcometers are coating thickness gauge with a built-in high-quality probe. It accurately measures coating thickness on various substrates, offering a wide range of measurements. It features automatic substrate recognition, multiple probe options, statistical analysis functions, data storage, and connectivity. Its user-friendly interface makes it easy to operate and obtain precise measurements.
Features
- Built-in high-quality probe for accurate measurements
- Wide measurement range for various coating thicknesses
- Automatic substrate recognition for enhanced accuracy
- Multiple probe options for different applications
- Statistical analysis functions for data interpretation
- Data storage for measurement records
- Connectivity options for easy data transfer
- User-friendly interface for easy operation
Technical Specifications
| Probe | Probe F | Probe N |
| Measuring principle | Magnetic Induction | Eddy Currents |
| Measuring range | 0 to 2000 um | |
| Measuring Accuracy | ±(2%+1um) | |
| Measuring resolution | 0.1um(0-100um);1 um (>100 um) | |
| Calibration | Zero-point calibration | |
| Memory | 2000 | |
| Units | um, mm, mils | |
| Probe Triggering force | About0.5-1.2N | |
| Minimum radius of curvature | Convex0.19685 in (5 mm); Concave0.984252 in (25 mm) | |
| Minimum measured area | Diameter 0.393701 in (10 mm) | |
| Minimum thickness of substrate | 0.00787402 in (0.20 mm) | 0.001181102 in (0.0 3 mm) |
| Maximum measuring speed | 2 times/s | |
| Display | LCD with backlight | |
| Operation temperature | Temperature: 14 °F to 122 °F (-10 ℃ to 50 ℃); Humidity:20%RH-90%RH(Non-condensation) | |
| Storage temperature | Temperature: 14 °F to 76 °F (-10 ℃ to 60 ℃); Humidity:20%RH-90%RH(Non-condensation) | |

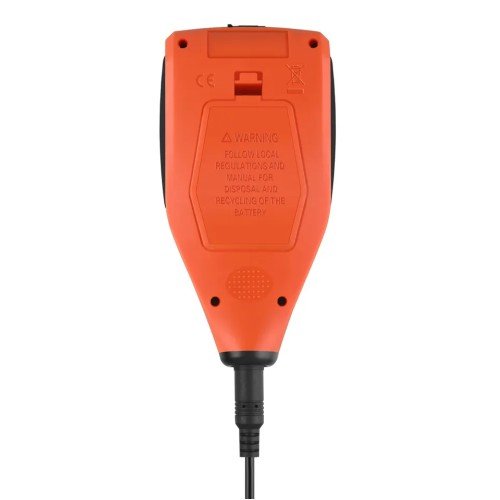

| Power supply | 2 pcs AAA battery or 2 pcsAAA 1.2VNiMH rechargeable battery | |
| IP grade | IP40 | |
| Dimension | 4.05512 in x 2.44094 in x 1.063 in (103 mmx62 mmx27 mm) | |
| Case Material | ABS | |
| Net weight (no battery) | 0.125663 lb (57g) | |
| Warranty | 12 months | |
