Overview

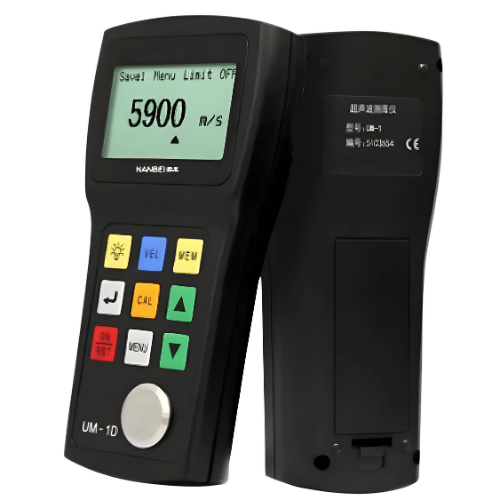

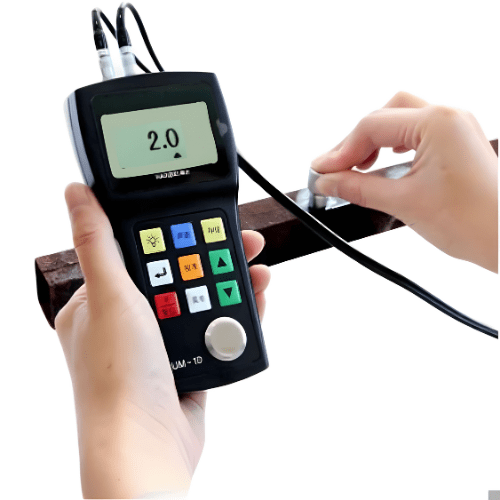

Enviro Testers Digital Ultrasonic Thickness Gauge can measure the thickness of metal materials, high temperature pipes, pipes, plates (steel, aluminium), iron pipe, PVC pipe, glass and other materials. Can be widely used in manufacturing, metal processing industry, chemical industry, commercial inspection and other testing areas, but also on the production equipment in a variety of pipes and pressure vessels to monitor their use in the process of monitoring the degree of corrosion after the reduction is Material protection necessary special equipment.
Features
- Ideal for measuring pipe thickness after corrosion

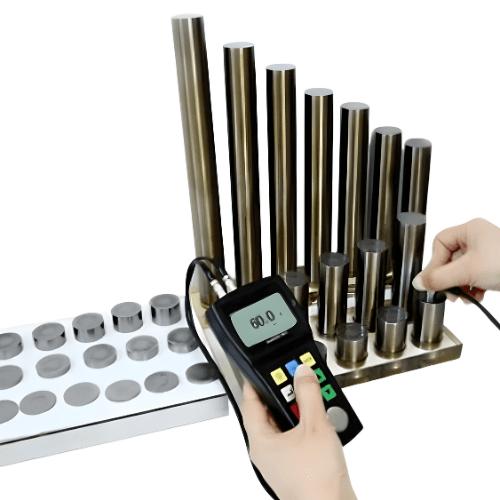

- Each instrument is calibrated with 34 standard tests
- Measures thickness of various materials
- Monitors degree of corrosion in pipes and pressure vessels
Technical Specifications
| Display | 128 × 64 dot-matrix LCD screen with EL backlight |
| Work Principle | P-E (pulse-echo) with dual-crystal probes |
| Measuring | 0.8 to 300 (Depends on the probes, materials tested, and surface conditions and the UM-1 model can only be used with one probe at the factory) |
| Resolution | (0.1 mm) or 0.001 in |
| Repeatability | 0.1 mm or 0.001in |
| Unit | Mm or inch |
| Calibration Mode | Zero calibration two-point calibration |
| V Path Correction | Automatic V-path correction to compensate for the non-linearity of dual crystal probes |
| Measurement Update Rate | 4 Hz |
| Display | 128 × 64 dot-matrix LCD screen with EL backlight |
