Name: Enviro Testers Hydrogen Gas Detector - Enviro Testers
SKU: ETEHGD-201

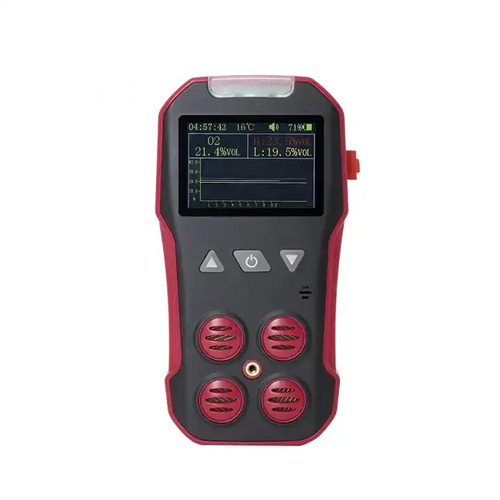

Enviro Testers Hydrogen Gas Detector

This product Hydrogen Gas Detector has temperature range of -4°F to 122°F, humidity range of 0% RH to 95 % RH, and recovery time is ≤10 s.

SKU: ETEHGD-201 Category: Hydrogen Gas Monitors

Feature

Using imported high-precision electrochemistry principle of the sensor
USB high speed data transmission, downloadable print data
LCD dot matrix display technology, can display the gas species, gas unit, the gas density
Maximum measurement, local time, environment temperature
Support in both Chinese and English operation interface, simple and convenient to switch
Gas concentration units of PPM, mg/m3 can quickly switch display
The built-in micro sampling pump, pump suction size ten gear is adjustable
Explosion-proof conformity certification, explosion-proof level Exia II CT4

Technical Specifications

Sampling Method	Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection
Measure Range	0 ppm to 10 ppm, 0 ppm to 50 ppm,0 ppm to 100 ppm, 0 ppm to 500 ppm,0 ppm to 1000 ppm, 0 ppm to 2000 ppm,0 ppm to 5000 ppm, 0 ppm to 10000 ppm (optional)
Resolution	0.001 ppm (0 ppm to 10 ppm), 0.01 ppm (0 ppm to 50 ppm, 0 ppm to 100 ppm), 0.1ppm (0 ppm to 500 ppm), 1 ppm (0 ppm to 1000 ppm above)
Precision	2% FS
Signal Output	USB high speed data transmission, downloadable print data(optional)
Response Time	≤10 s
Repeatability	≤±1 %
Zero shift	≤±1% (F.S/year)
Explosion-Proof	ExiaⅡCT4
Alarm mode	sound, light, vibration
Recovery Time	≤10 s
Linearity Error	≤±1 %
Display	LCD dot matrix display
Gas Unit	Units are switchable
Humidity	0% RH to 95 % RH
Degree of Protection	IP 66
Operating Time	100 hours(Pump off)
Temperature	-4 °F to 122 °F (-20 °C to 50 °C)
Dimension	8.07 in x 2.95 in x 1.25 in (205 mm x 75 mm x 32 mm)
Weight	0.66 lb (300 g)
