Overview

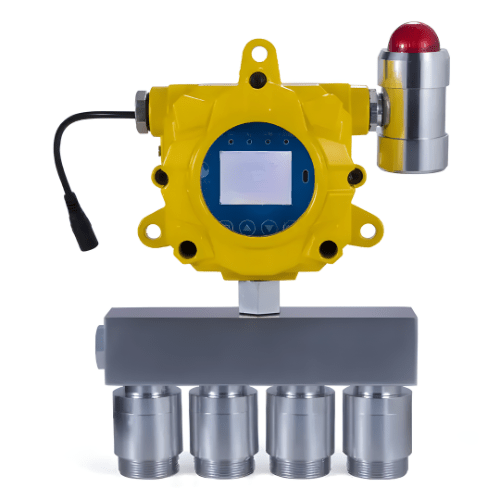

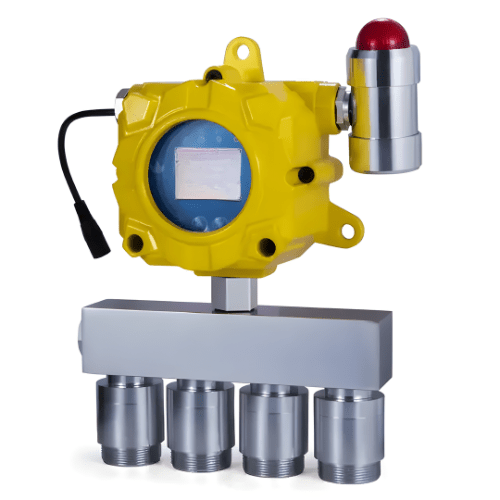

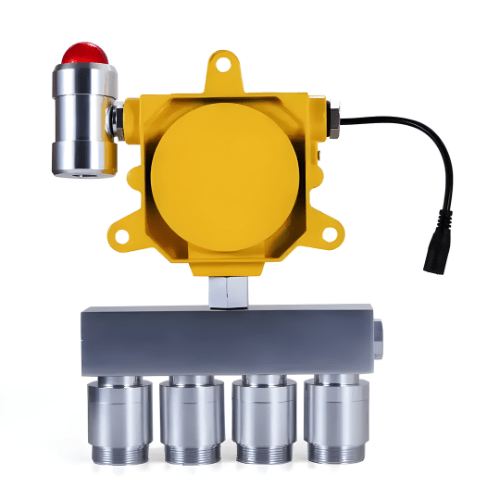

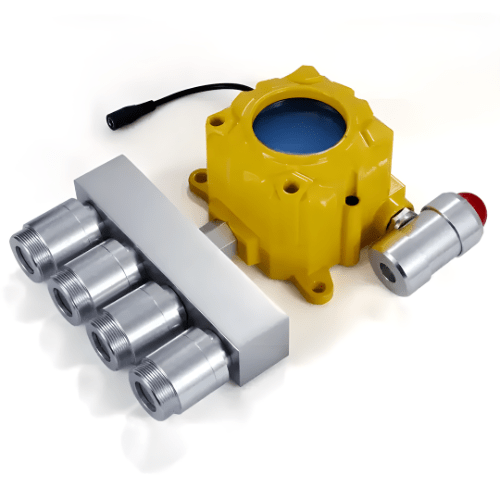

Enviro Testers hydrogen gas detector is a fixed type of detector that can continuously monitor four gases in operation at the same time, that is, flammable gas, oxygen, carbon monoxide, hydrogen sulfide gas concentration. The detector uses natural diffusion to detect gas concentration. It uses imported electrochemical sensors, catalytic combustion sensors, infrared sensors or PID sensors. It has excellent sensitivity and excellent repeatability. The LCD liquid crystal suitable for factory applications displays the concentration of leaked gas. Start the sound and light alarm signal or drive the exhaust system immediately when the preset alarm point is exceeded. The international standard digital signal interface can be connected to the factory computer software. The detector uses embedded micro-control technology. The machine’s performance ranks in the domestic leading level, this product is suitable for petroleum, chemical industry, fire protection and other places that need to detect gas concentration.
Features
- Specifically made shell
- Powerful kernel
- High-quality industrial grade sensors
- Standard RS485 output is widely compatible
- Real-time data on site display
- Different alarming method
- Remote control
- Multiple protection
Technical Specifications
| Gas detected | EX.02, CO, H2S (support other gas combinations) |
| Sensor type | Support electric-chemical, Catalytic Semi- conductor, PID infrared sensors |
| Detection method | Diffusion Pump |
| Working voltage | DC (24 ± 3.6) V |
| Power | 1.6 W |
| Response time | 30 s (T90) |
| Installation | Wall mounted, pipeline (Thread size: G1/2) |
| Gas | O2, H2S, CO, EX |
| Range | O2: 0% to 30% vol, EX: 0% to 100% LEL, CO: 0 ppm to 1000 ppm, H2S: 0 ppm to 100 ppm |
| Deviation | +3% FS |
| Repetition | 2% |
| Relay | two relay output, free contact 30 VDC 1 A/125 VAC 0.3 A |
| Degree of protection | IP65 |
| Thread size | M20X 1.5, G1/2 |
| Explosion-Proof | Ex d llc T6 Gb/Ex ID A21 IP65 T 176 °F (T 80°C) |
| Shell material | Die-casting aluminium, Explosion-proof and anti-corrosion |
| Cable | > 0.15 in x 0.05 in (4 mm x 1.5 mm) Shielded cable |
| Working humidity | s95% RH, no condensation |
| Working pressure | 86 Kpa to 106 Kpa |
| Working temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 10.2 in × 6.96 in × 3.54 in (261 mm x 177 mm x 90 mm) |
| weight | 5.73 lb (2.6 kg) |
