Overview

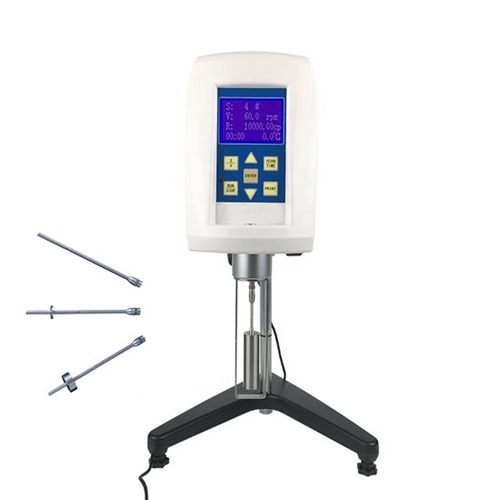

Enviro Testers Rotational Viscometer with LCD has functions such as liquid crystal backlight display, program setting, automatic control, timing measurement, automatic scanning, level pre-position and error alarm. The screen directly displays information such as viscosity, temperature, time of measurement, speed, rotor number, percent torque, and maximum viscosity that can be measured for the selected range. The linearity of each bar of the viscometer is automatically corrected by the computer according to the nominal value of the standard sample, ensuring that the instrument is highly sensitive, highly accurate, and highly repeatable. The measured data is accurate, reliable and repeatable.
Technical Specifications
| Display Mode | Liquid-crystal display |
| Speed (r/min) | 0.1/0.3/0.6/ 1.5/3/6/12/30/60 |
| Rotor | 1#,2#,3#,4# The 0# rotor is optional, for measuring ultra-low viscosity below 15 |
| Measuring Range | 10 to 2,000,000 |
| Sample Size Required For Each Measurement | 250 ml to 400 ml |
| Viscosity Display Accuracy | 1.45 psi.s (0.01 mPa.S) |
| Measurement Error | ±3% (Newtonian liquid) |
| Repetitive Error | ±1.5% (Newtonian liquid) |
| Sample Amount | 18 ml (Each measurement required) |
| Timing Measurement Function | Standard configuration |
| Temperature Measurement | Standard configuration |
| Measurement Range Display | Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value |
| Constant Temperature Component | Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.) |
| Data Output Interface | Standard configuration |
| Data Processing Software | Option |
| Working Power Supply | 110 V / 60 Hz,220 V / 50 Hz |
| Outline Dimension | 11.81 in x 11.81 in x 17.71 in (300 mm × 300 mm × 450 mm) |
