Overview

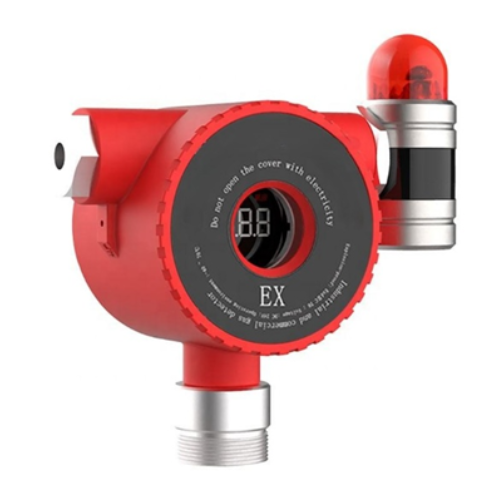

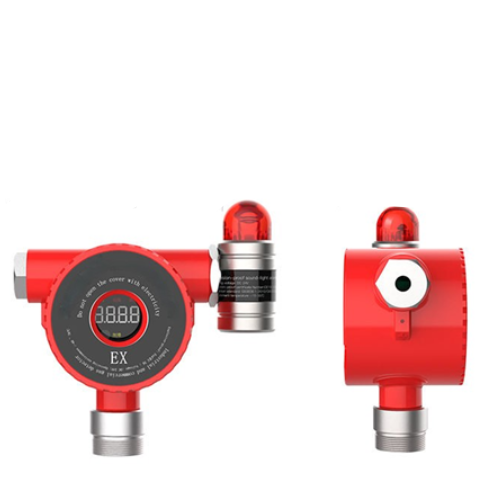

This fixed gas detector is designed for accurate monitoring of methane, CH4, and LPG with LEL detection in industrial and commercial environments. It uses advanced sensors to provide precise measurements and ensures early warning of gas leaks through audible and visual alarm alerts. Built with durable construction, it supports continuous operation and delivers fast response to hazardous gas concentrations. The device is suitable for factories, warehouses, chemical plants, and other facilities where combustible gases pose a risk. With reliable performance and strong safety features, this detector offers an effective solution for preventing gas-related accidents.
Features
- High sensitivity sensors for accurate gas detection.
- Detects methane, CH4, and LPG gases with LEL monitoring.
- Audible and visual alarms for immediate alerts.
- Provides reliable protection against combustible gas hazards.
- Durable construction for industrial environments.
- Suitable for factories, warehouses, and chemical plants.
- Fast response time for early leak detection.
Technical Specifications
| Material | Die-Cast Aluminium |
| Probe Style | Digital Display, Sound And Light Alarm |
| Detection Method | Diffusion |
| Explosion Proof Grade | Ex d II C T6 Gb |
| Protection Grade | IP66 |
| Electrical Interface | G3/4 (six points) |
| Working Voltage | DC 24 V (DC direct current, AC alternating current) |
| Detection Range | 0 to 100 % LEL or 3 to 100 % LEL (LEL lower explosion limit) |
| Indication Error | ±5 % F.S. (F.S. full scale) |
| Response Time | T90 |
| Connection Cable | Branch Line RVVSP 3 x 1.0 mm² (4 to 20 mA analog) |
| Quality Assurance | 100% Quality Inspection |
| Working Temperature | Flammable Gases -40 °F to 158 °F, Other Gases 14 °F to 131 °F |
