Overview

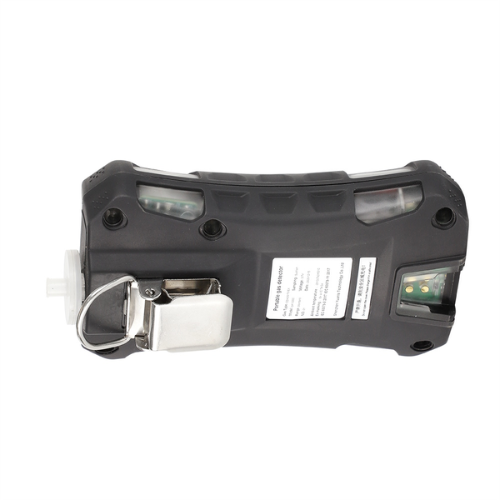

Enviro Testers IECEX ATEX Portable Ethylene Oxide Gas Detector is a high-precision device designed for safe and accurate detection of ethylene oxide and other gases. This product features a dual-purpose suction and diffusion system, allowing simultaneous measurement of up to four gases. With explosion-proof certification, Bluetooth transmission, and IP68 protection, it ensures reliability in demanding environments. Its advanced alarm system, password protection, and multiple display options provide enhanced safety and convenience. The rugged design offers three-meter drop resistance, making it suitable for industrial, laboratory, and environmental monitoring applications.
Features
- Detects 1 to 4 gases simultaneously
- IECEX ATEX explosion-proof certification
- IP68 protection level for harsh conditions
- Bluetooth transmission for real-time data transfer
- Three-meter drop resistance
- Internal pump with fast detection speed
- Large display with automatic 180° rotation
- Multiple alarm modes: sound, vibration, light
- High and low alarm latch function
- Stores up to 100,000 data sets with export option
Application
Ideal for monitoring ethylene oxide and multiple gases in factories, chemical plants, confined spaces, and hazardous industrial environments.
Technical specifications
| Sensor Type | Electrochemical |
| Gas Type | Ethylene oxide (C2H4O) |
| Measure Range | 0 to 10, 50, 100, 500, 1000 ppm |
| Resolution | 0.01 to 1 ppm |
| Response Time | ≤ 30 seconds |
| Sampling Method | Internal pump with suction and diffusion dual use |
| Display | Monochrome graphics (160 × 96), auto-rotating screen |
| Data Storage | 100,000 sets, export via data cable |
| Alarm | Sound (95 dB at 11.8 in / 30 cm), vibration, flashing LED, Bluetooth alerts |
| Battery | 3.7 V rechargeable lithium battery, 2200 mAh |
| Working Hours | >15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥ 4 hours charging time |
| Protection Grade | IP68 |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Operating Temperature | -4 °F to 122 °F (-20 °C to +50 °C) |
| Humidity | 0 to 90% RH (non-condensing) |
| Environmental Pressure | 12.5 to 15.4 psi (86 to 106 kPa) |
| Weight | 12.9 oz (365 g) including battery and clip |
| Size | 6.18 in x 3.33 in x 2.34 in (157 mm x 84.5 mm x 59.5 mm) |
